01A Series Diesel Flow Meter

SKU 113255-103
Availability:
In stock
Availability:
Manufactured Item - Typical Lead Time 5 days
Original price $345.00 - Original price $345.00
Original price
$345.00
$345.00 - $345.00
Current price $345.00

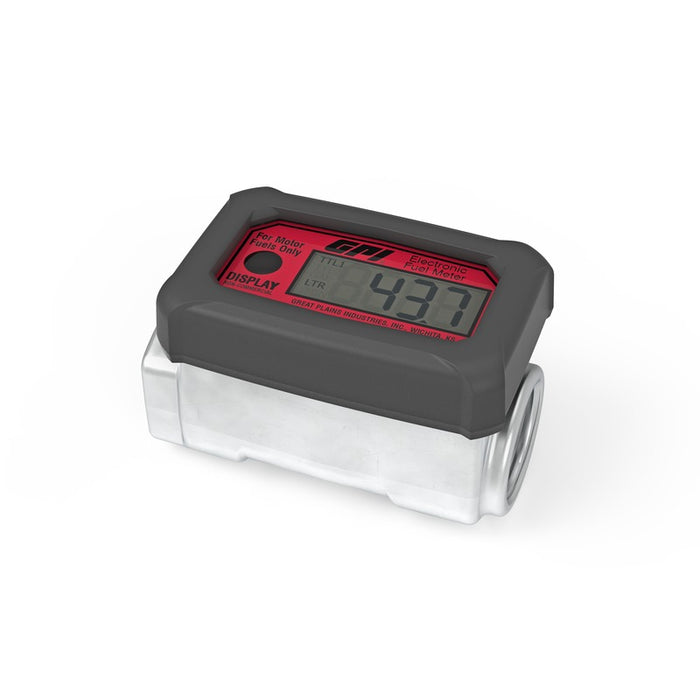

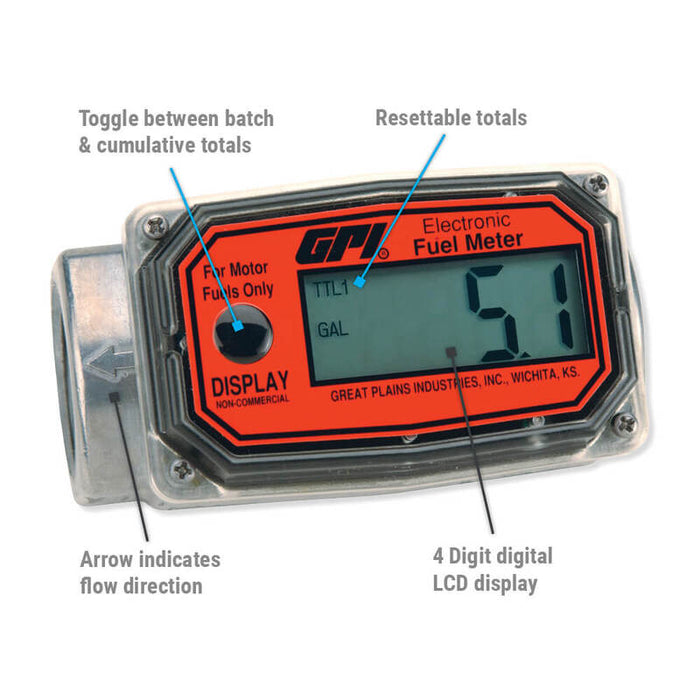

The 01A Series Diesel Flow Meter is a lightweight, accurate, and reliable turbine meter with rugged aluminum housing, sealed electronic circuitry and digital display, complete with a protective rubber bumper for enhanced durability in tough environments

Accurate (within 5%) and repeatable (± 0.5%), the 01A Series Digital Diesel Meter works perfectly with diesel and kerosene, which makes this digital diesel meter a versatile and economical solution.

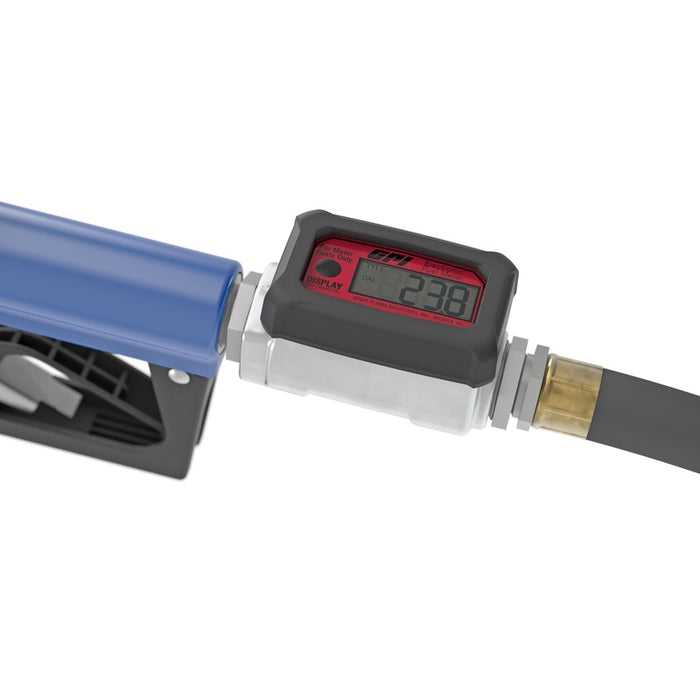

Designed with industry in mind, the 01A series is perfect for inline use in gravity-fed systems and a wide range of fuel transfer pumps and comes factory calibrated, ready for plug and play. This allows for simple installation by users in a wide variety of installation environments and requirements.

For use with diesel only on gravity feed or electric transfer pumps

Applications
  • Fuel Transfer
  • Agricultural Equipment Refueling
  • Depot Refueling
Features
  • Maximum batch and cumulative total: 9,999L
  • Power: Two alkaline AAA batteries (Average 5 year use)
  • Factory calibrated (not field calibratable)
Specifications
  • Technology: Turbine
  • Flow Range: 10 - 100 L/min
  • Accuracy: ± 5%
  • Repeatability: ± 0.5%
  • Pressure Rating: 21 bar (300 psi)
  • Operating Temperature Range: -10° C - 50° C
Connection: 1 inch BSPT
