RT14 Series Flow Rate Totaliser

SKU RT141D0FM
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Original price $1,066.00 - Original price $1,352.00
Original price
$1,066.00
$1,066.00 - $1,352.00
Current price $1,066.00

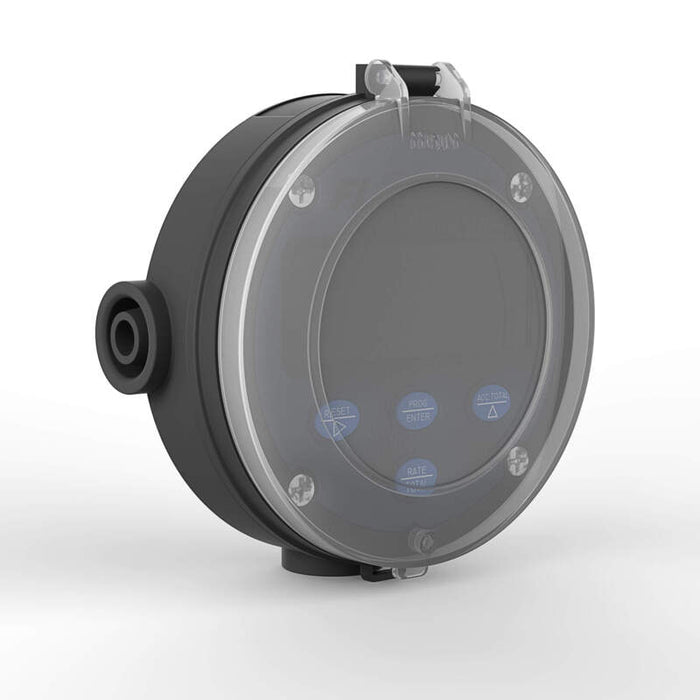

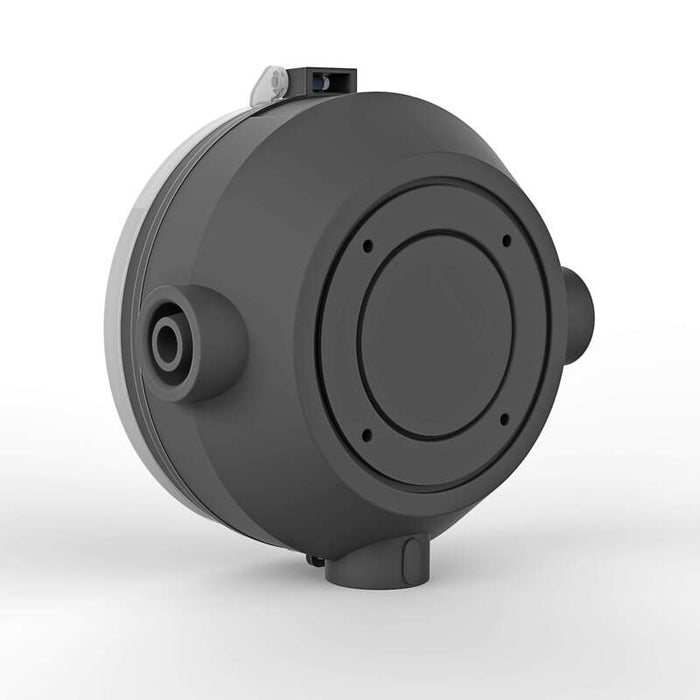

The FLOMEC® RT14 Rate Totaliser is the perfect display for users who require a more sophisticated local display that can also interface with external control or monitoring equipment. The RT14 features a backlit LCD, which provides optimal readability from a distance or in low-light conditions. Various output options are available to suit almost any flow measurement application, with a 4-20mA analogue signal for flowrate feedback and control, flow alarms for monitoring of critical processes, and a scaled pulse signal for remote monitoring of total volumes. The RT14 is housed in a robust glass-reinforced nylon enclosure with an IP66/67 rating, rubberised buttons, and a polycarbonate screen protector. The FLOMEC® RT14 is a fantastic product for almost any flow measurement application in both safe and hazardous areas.

Control Outputs

An unscaled pulse output serves as an input signal amplifier, ideally suited for coil-type inputs from turbine or paddle wheel meters. The output can be transmitted over and can be configured for NPN/PNP with a wiring connection.

Programming

Simple PIN-protected flowchart programming with English prompts guide you through the programming routine, greatly reducing the need to refer to the instruction manual.

The RT14 Rate Totaliser is the perfect product when a local display is required with the ability to interface with external control and monitoring equipment (PLC, SCADA, DCS).

Features
  • Self or external powered, 8-digit LCD total & 8-digit cumulative totaliser, 5-digit rate display
  • Robust IP66/67-NEMA4X universal mount glass reinforced nylon enclosure with rubberized buttons and polycarbonate lens
  • GRN field & panel mountable housing
  • Scaled pulse, 4-20mA (Loop Powered) Output, multi-point linearisation of flow input or frequency inputs
  • Flow alarm for high, low or high/low
  • PIN-protected programming
  • Simple flowchart touch-key programming
  • Reverse polarity protection
  • Non-volatile memory, Long battery life
  • Flow meter and pipe mount kits are available
Specifications
  • Instrument Type: Flow Rate Totaliser with Outputs
  • Mounting Type: Meter and Stem Mount, Wall, Pipe or Panel mount
  • Operating Temperature Range: -30°C - 80°C
Select Cable Entry: M20
Saftey Classification: Safe Area

FREQUENTLY ASKED QUESTIONS

Do your flow rate totalisers totaliser display instantaneous rate?

Yes, by pressing the RATE/TOTAL button of RT14 and RATE button of RT40 will show the flow rate or instantaneous rate.

Is the accumulated total in your totaliser resettable?

Yes, both RT40 and RT14 can be reset in programming mode. The steps for resetting the accumulated total can be found in the respective instruction manual.

Does RT40 Totaliser Instrument have an alarm?

Yes, the RT40 has a digital output can be set as a flow alarm to notify system faults, such as insufficient lubrication to a bearing. For more details about how to set up the Alarm output, you can refer to the Instruction Manual.

How long does the battery of your RT display lasts?

Under average conditions, the RT14 battery is expected to last for approximately 5 years. Average conditions are considered to be a reed switch input from a Flomec flowmeter with no outputs used. For the RT40, battery life is expected to last 3 years.

Can we install your RT instrument outside, without a roof or shade?

Yes, both our RT40 and RT14 have an IP66 (Nema 4x) rating. This means "water projected in powerful jets should not enter the enclosure in harmful quantities.". RT14 is also IP67-rated, which means it has protection against the effects of immersion in water between 15cm and 1m for 30 minutes.
