G2 Series Turbine Flow Meter

SKU G2S05IQ9LMA
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
Manufactured Item - Typical Lead Time 5 days
Availability:
In stock
Availability:
In stock
Original price $1,486.00 - Original price $2,908.00
Original price
$1,486.00
$1,486.00 - $2,908.00
Current price $1,486.00

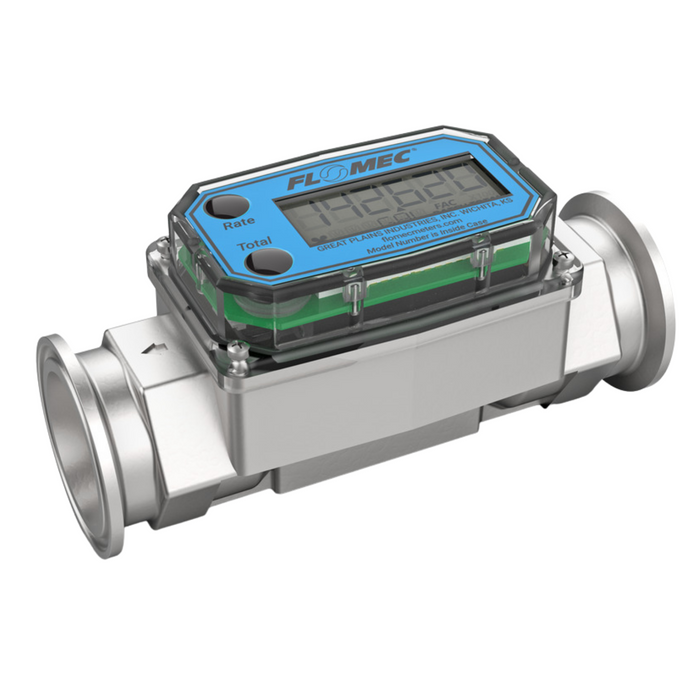

The FLOMEC® G2 Series Stainless Steel Precision Turbine Meters are designed for simple installation and suitability with most water and chemical applications.

The robust design and versatility of the G2 flow meter make it the perfect solution for multiple flow measurement applications across different liquids, including water, fuels, solvents, and petroleum-based chemicals.

The modular nature of the G2 Series allows for a variety of display, output, and installation options.

Tri-Clover® (Stainless Steel only) - Clamp size is 1/2" bigger than meter size i.e. 1" meter has 1.5" tri-clamp fittings.

Applications
  • Batching
  • Brewing
  • Food & Beverage Processing
  • Blending
  • Fuel Products
  • Water
  • Monitoring Clean Fluids
  • Industrial Fluids
  • Plant Process Water
Features
  • Meter is designed for thin fluids < 100 cp.
  • Modular design allows for use with Output Modules, Sensors and Remote Transmitters.
  • 2 Totals (Batch = Resettable, Cumulative = Non resettable); Rate of Flow, Factory calibrated in gallons or liters. Field calibratable. Includes nonvolatile totals.
  • High accuracy meter
  • Internal parts are simple to replace for easy maintenance.
  • AAA Alkaline battery life: 2 years
Specifications
  • Technology: Turbine
  • Flow Range: 3.8 - 760 L/min (Size Dependant)
  • Accuracy: ± 1.5% - 0.75% (Size Dependant)
  • Repeatability: ± 0.3%
  • Pressure Rating: 103 bar (1500 psi)
  • Operating Temperature Range: -18° C - 54° C
Select Size: 1/2 inch (3.8 - 38 L/min)
Select Connection: ISO (F)

FREQUENTLY ASKED QUESTIONS

What lengths of pipe are recommended before and after the meter so it is accurate?

You want to take the diameter of the meter times 10 on the inlet and times 5 on the outlet. For a 1 in. meter this would be 10 in. of straight 1 ft pipe going in and 5 in. of straight 1 ft pipe coming out. If you cannot do this you will not make the meter worthless, but you cut into the accuracy.

What happens if the air goes through a turbine meter?

Turbine meters can not tell the difference between air and liquid. It just knows the turbine is spinning, so any reading will be inaccurate if air is going through the turbine. Another reason to not put air through a turbine is potential damage. The air will make it spin extra fast, with no liquid for lubrication damage can occur. When the liquid gets there it can hit the turbine like a hammer. It is recommended to slowly bleed the air out of the lines then reset the meter total.

Can a turbine go below the minimum listed flow range?

In general you can expect a turbine meter to keep counting below its minimum range, but it will lose some of its accuracy. Normally it will completely stop at ½ of its published minimum flow. For example a ½ in. meter that reads between 1 and 10 LPM will be able to stretch down to around 1/2 a litre per minute. Keep in mind that nothing below the published minimum flow is guaranteed, and not all turbines will give this much extra performance.

Do the Turbine meters come with a calibration report?

The G Series, G2 Series and A1 Series Meters all come with a calibration report. This report is the data of the output of the meter at several flowrate points and will meet or exceed the advertised accuracy of the meter over the recommended flow range. This report should not be confused with a calibration certificate. (If a certificate is needed, request one from GPI.)

Can I remotely mount the display?

Yes, you can purchase a FM Approved Remote Kit (part # 113275-1). You can take the existing display off of your TM, A1 or G2 series meters, and put the remote kit in its place. At the other end of the remote kit is a box that is designed to be panel mounted. The existing display can then be installed on the remote box.
