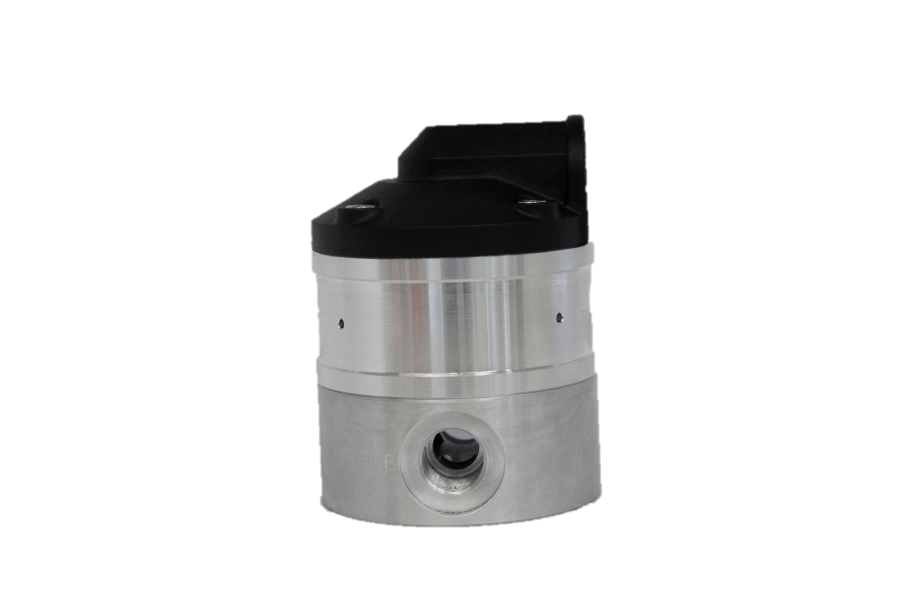

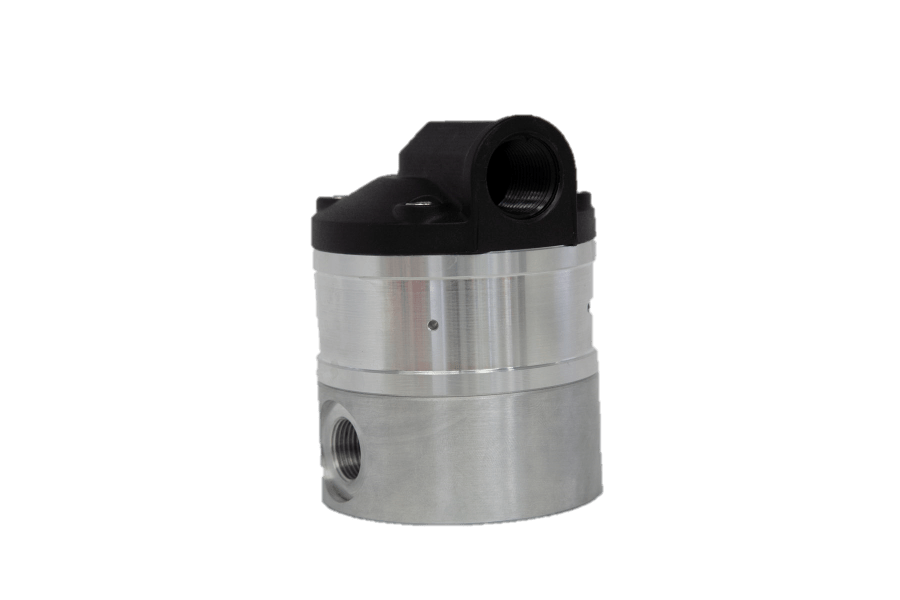

OM Series Flowmeter - OM008S001-821

OM Series Flowmeter - OM008S001-821

FLOMEC® OM Series Meters are an extremely versatile flowmeter which accurately measures high and low viscosity fluids. With no flow conditioning required and a small footprint, the OM008S001-821 flowmeter allows for compact installation. An accuracy of 1% and 0.03% repeatability regardless of viscosity changes make the OM Series a versatile meter. With a simple and reliable design concept using only two moving parts, they provide long service life and minimised maintenance costs.
Product comes calibrated with standard calibration certificate.

Specifications

Series: OM Oval Gear

Model: 3/8"

Body Material: 316L Stainless Steel Body

Rotor Material: PPS - Teflon filled Rotors

O-Ring Material: Viton O-Ring

Temperature Limits: 80°C

Process Connections: NPT female threaded

Cable Entries: M20 x 1.5mm

Integral Options: Pulse Out
